Mid-Level Three Heater Infrared Conveyor Dryer



The LittleRed® X3 Conveyor Dryer from Vastex offers a 41 in. (104 cm) long heating chamber that houses three infrared heaters, closely aligned with no gaps, to maintain a constant curing temperature while the garments travel the length of the conveyor.



Inside the heating chamber, the three height adjustable infrared heaters raise the temperature of the ink (not the air inside the chamber) with sustained intensity for curing of screen printed plastisol inks, water-based inks, discharge, and/or DTF adhesives at high rates.



The modular design allows for expandability to easily add chambers and conveyor length as production needs increase.



All LittleRed series dryers have a tilting heater design. Works great for curing hats.

Belt Width
Volts
Phase
Special Order
disabled
This product is typically ready for pickup or shipping within one week, subject to lead times provided by manufacturers.
The Little Red X3 Mid-Level Infrared Dryer is a made-to-order product that is only assembled and prepared for shipment after you place your order. Please note that freight costs are not included in the purchase price. After your purchase, we will contact you to confirm shipping details, provide a shipping quote, and give you the lead times from the manufacturer. Upon payment of the shipping invoice, we will arrange delivery as per your preferences. For additional information, connect with a RB Digital sales specialist today.
View full details

Features And Highlights



  • POWERFUL

    • LR X1-30: 120V/2,000 watt or 240V/2,600 watt heater
    • LR X1-54: 240V/5,200 watt heater

  • EFFICIENT

    Closely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing

  • DEPENDABLE

    Industry-leading 15-year heater warranty

  • ACCURATE

    Digital PID Temperature controller is accurate to +/-1°F

  • CONSISTENT

    Low friction belt aligner and DC belt speed control with digital display

  • HEAVY DUTY

    "X-Series" Conveyor Belt Tracking System with Teflon coated fiberglass belt

  • COOL

    Powered exhaust system cools the outer cabinet while evacuating moisture and fumes

  • ADJUSTABLE

    2 - 7 in. (5 - 18 cm) belt-to-heater clearance, adjustable separately on each side for each heater

  • EXPANDABLE

    Add 18 in. (46 cm) and 36 in. (92 cm) chambers and/or 18 in. (46 cm) belt extensions



Add On Options


To add additional options, our service team will contact you after purchase to assist in fully customizing your dryer.

• Additional heating chambers and conveyor belt extensions
• Heavy duty belt motor (recommend for longer conveyor belts)
• Control box on left side (right side standard)
• Locking casters for mobility



Modular Expandability Allows Your Dryer to Grow With You


The capacity (belt speed) of all Vastex floor standing conveyor dryers can be doubled or tripled as new or when needs increase by simply adding one or two modular heating chambers and extending the conveyor belt. This eliminates the need to invest in a larger dryer than you need at the onset, and avoids the high cost of purchasing a new dryer when your needs increase.



Cutter

Additional Information

  •
    LR-X3-30 1 Row
    Plastisol @ 25 secs.** 360+/hr
    Water Based/Discharge @ 70 secs. ** 120+/hr



  •
    LR-X3-54 2 Rows
    Plastisol @ 25 secs.** 720+/hr
    Water Based/Discharge @ 70 secs. ** 240+/hr

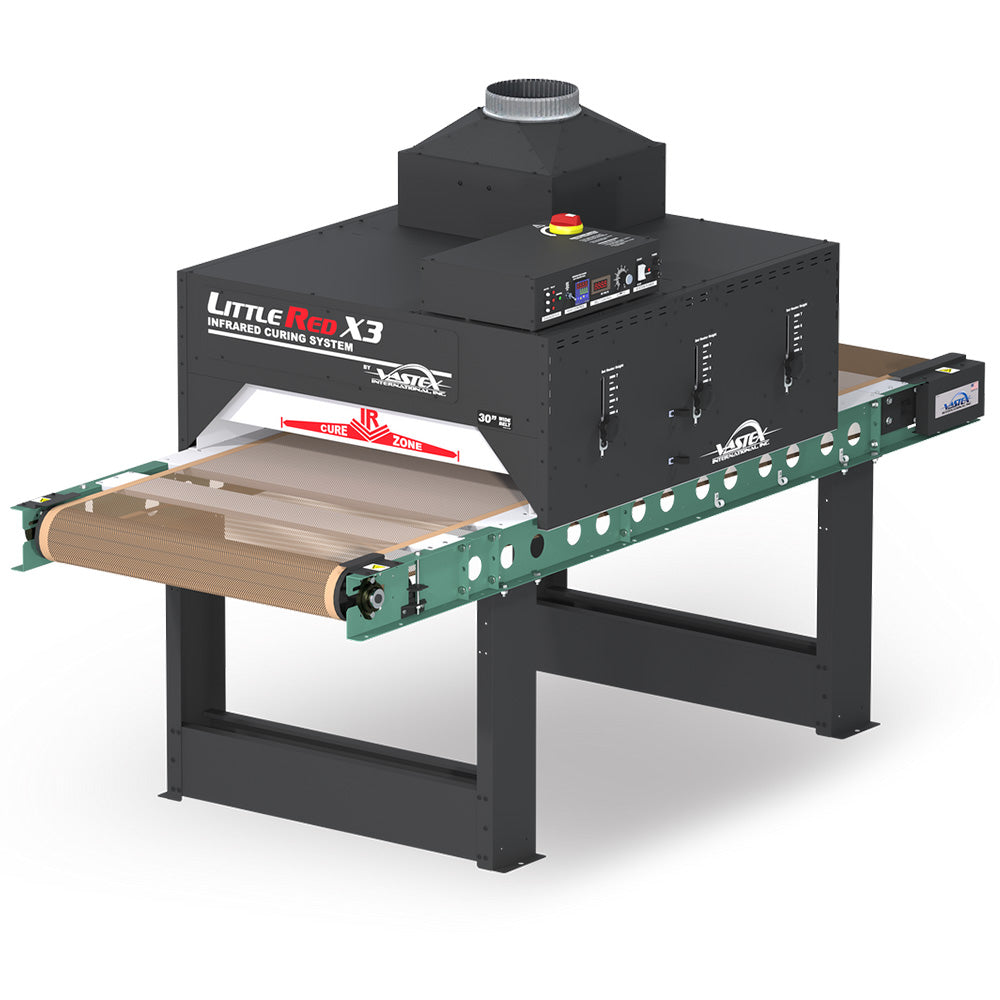

The Little Red X3-30 model with 30 in. (76 cm) wide x 88 in. (224 cm) long conveyor belt is offered with three 24 in. (61 cm) wide 240V/2,600 watt heaters (total wattage 7,800 w) to cure up to 360 plastisol-printed garments/h or 120 discharge or water-based printed garments/hr and cures DTF adhesives at high rates.

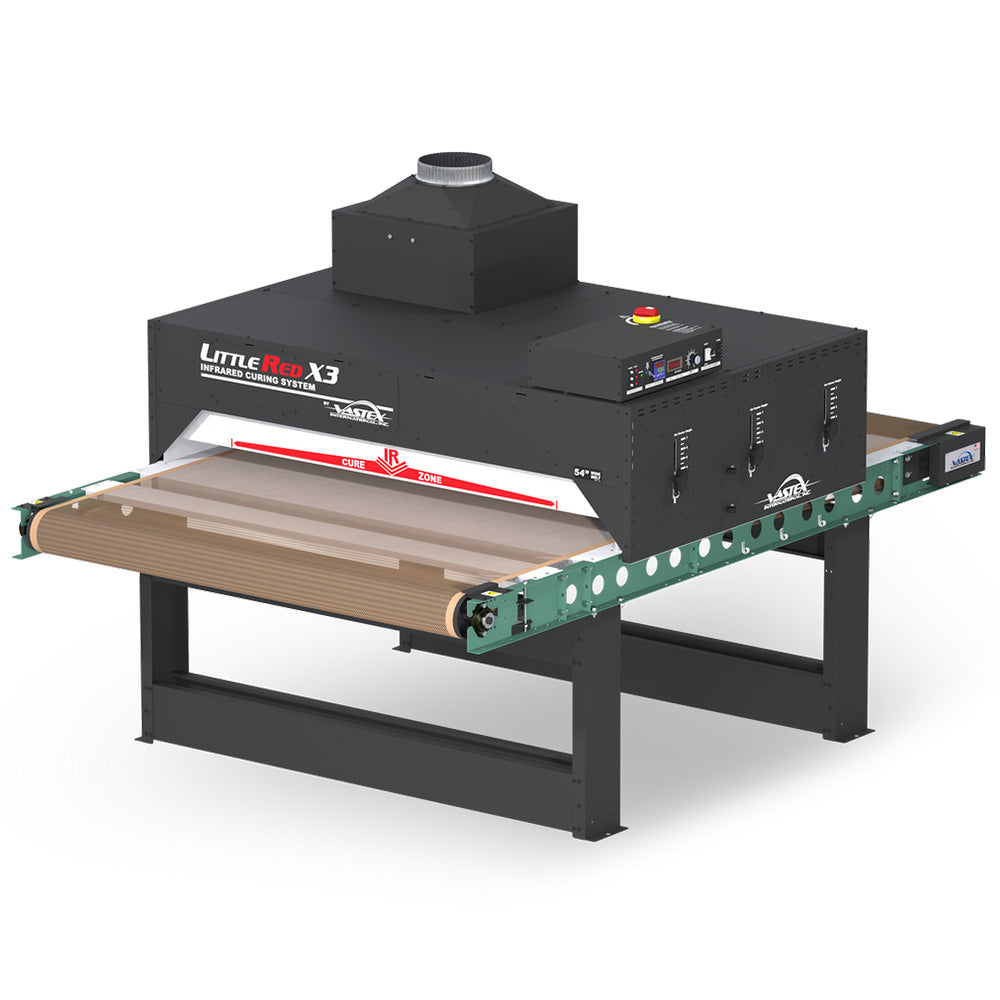

The Little Red X3-54 model with 54 in. (137 cm) wide x 88 in. (224 cm) long conveyor is equipped with three 48 in. (122 cm) wide 240V/5,200 watt infrared heaters (total wattage 15,600 w) to cure up to 720 plastisol-printed garments/h or dry 240 discharge or water-based printed garments/h and cures DTF adhesives at high rates.

  LR-X1-18 LR-X1-30 LR-X2-30 LR-X1-54 LR-X2-54 LR-X3-30 LR-X3-54
Heater Warranty 15 Year 15 Year 15 Year 15 Year 15 Year 15 Year 15 Year
Defect Warranty 3 Year 3 Year 3 Year 3 Year 3 Year 3 Year 3 Year
Shirts / Hr*
Plastisol @ 25 secs
110+@ 25 secs 90+(120V)/130+ (240V) @ 25 secs. 260+@ 25 secs. 260+@ 25 secs. 520+@ 25 secs. 360+@ 25 secs. 720+@ 25 secs.
Shirts / Hr* - Waterbased/ Discharge 50+@ 70 secs 45+@ 70 secs. 90+@ 70 secs. 90+@ 70 secs. 180+@ 70 secs. 120+@ 70 secs. 240+@ 70 secs.
Shirts/hr* - DTG/digital N/A N/A N/A N/A N/A N/A N/A
Time in Tunnel Range (mm:ss) 00:17 - 01:20 00:17 - 01:46 00:14 - 01:28 00:17 - 01:46 00:11 - 01:39 00:11 - 01:39 00:11 - 01:35
Belt Speed 0.6 - 7.4 FPM (0.18 - 2.3 MPM) 0.6 - 7.4 FPM (0.18 - 2.3 MPM) 1.4 - 17.7 FPM (0.4 - 5.4 MPM) 0.6 - 7.4 FPM (0.18 - 2.3 MPM) 1.4 - 17.7 FPM (0.4 - 5.4 MPM) 1.4 - 7.4 FPM (0.18 - 2.3 MPM) 1.4 - 7.4 FPM (0.18 - 2.3 MPM)
Exhaust (Free Air) 144 CFM (4.1 CMM) 144 CFM (4.1 CMM) 300 CFM (8.5 CMM) 300 CFM (8.5 CMM) 350 CFM (9.9 CMM) 388 CFM (11 CMM) 550 CFM (15.6 CMM)
Exhaust Stack Diameter 4” (10.16 cm) 4” (10.16 cm) 6” (15.24 cm) 6” (15.24 cm) 6” (15.24 cm) 8” (20.32 cm) 8” (20.32 cm)
Overall Length 48" (122 cm) 48" (122 cm) 66” (168 cm) 66” (168 cm) 66” (168 cm) 88” (224 cm) 88” (224 cm)
Overall Width 30" (76 cm) 41” (105 cm) 41” (105 cm) 65” (166 cm) 65” (166 cm) 41” (105 cm) 65” (166 cm)
Overall Height 48” (122 cm) 48” (122 cm) 50” (127 cm) 48” (122 cm) 50” (127 cm) 50” (127 cm) 50” (127 cm)
Belt Width 18” (46cm) 30" (76 cm) 30" (76 cm) 54” (137 cm) 54” (137 cm) 30” (76 cm) 54” (137 cm)
Chamber Length 18” (46 cm) 18” (46 cm) 27” (69 cm) 18” (46 cm) 27” (69 cm) 41”(104 cm) 41”(104 cm)
Chamber Infeed Width 21” (53cm) 33.5” (85 cm) 33.5” (85 cm) 58.5" (149 cm) 58.5" (149 cm) 33.5" (85 cm) 58.5" (149 cm)
Chamber Infeed Height (adjustable) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm)
Heat Range (@ Heater) 0-750 F° (0-399 C°) @ 120 or 240V 0-900F° (0-482C°) @ 240V 0-750F° (0-399C°) @ 120V 0-900 F° (0-482 C°) @ 240V 0-900 F° (0-482 C°) @ 240V 0-900 F° (0-482 C°) @ 240V 0-900 F° (0-482 C°) @ 240V 0-900 F° (0-482 C°) @ 240V
Heater Size & Standard Wattage** 16"x20"(40.6x50.8 cm)

2,050 Watts
12" x 24" (30 x 61 cm)

240V / 1 @ 2,600 Watts 120V / 1 @ 2,000 Watts
12" x 24" (30 x 61 cm)

2,600 = 5,200 Watts
12" x 48" (30 x 122 cm)

5,200 Watts
12" x 48" (30 x 122 cm)

10,400 Watts @ 240V 12,000 Watts @ 380V
12" x 24" (30 x 61 cm)

7,800 Watts Total
12" x 48" (30 x 122 cm)

15,600 Watts Total
Cost / hour to operate
based on 10 cents / kwh
20 cents 26 cents @ 240V 20 cents @ 120V 52 cents 52 cents $1.04 78 cents 1.56 cents
Unit Weight 172 lbs (78 kg) 220 lbs (100 kg) 304 lbs (138 kg 380 lbs (173 kg) 480 lbs (218 kg) 480 lbs (218 kg) Call for details
Shipping Weight*** 295 lbs (134 kg) 350 lbs (156 kg) 495 lbs (225 kg) 550 lbs (250 kg) 638 lbs (290 kg) 548 lbs (249 kg) 828 lbs (376 kg)
Shipping Dimensions*** 37" x 45" x 40" (94 x 115 x 102 cm) 37" x 45" x 40" (94 x 115 x 102 cm) 50” x 48” x 40” (127 x 122 x 102 cm) 70” x 42” x 58” (178 x 107 x 148 cm) 70” x 42” x 58” (178 x 107 x 148 cm) 49” x 45” x 56” (125 x 115 x 143 cm) 69” x 49” x 58” (176 x 125 x 148 cm)
Electrical Specs** Chamber 120V / 16.5A / NEMA 5-20P 240V / 8.2A / 1 Ph. / NEMA 6-15P 240V / 11A / 1 Ph. / NEMA 6-15P 120V / 16.5A / NEMA 5-20P 240V / 21.6A / 1 Ph. / 3 wire 50/60HZ 240V / 22A / 1 Ph. / 3 wire 50/60HZ 240V / 44A / 1 Ph. / 3 wire 50/60HZ 240V / 34A / 1 Ph. / 3 wire 50/60HZ 240V / 68A / 1 Ph. / 3 wire 50/60HZ
Electrical Connection Cordset Included Cordset Included All amps shown are FLA (Full Load Amps), not recommended line size! Dryers on this page must be hard wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles, 210.20(a), 215.3 and 310 of the NEC code.
Optional Power 208V / 11A / 1 Ph. / NEMA 6-15P 208V / 11A / 1 Ph. / NEMA 6-15P 208V / 21.6A / 1 Ph. / 3 wire 50/60HZ

240V / 15A / 3 Ph 5 wire 50/60HZ

380V / 9A / 3 Ph. / 5 wire 50/60HZ
208V / 22A / 1 Ph. / 3 wire 50/60HZ

240V / 15A / 3 Ph 5 wire 50/60HZ

380V / 10A / 3 Ph. / 5 wire 50/60HZ
208V / 44A / 1 Ph. / 3 wire 50/60HZ

240V / 28A / 3 Ph 5 wire 50/60HZ

380V / 20A / 3 Ph. / 5 wire 50/60HZ
240V / 21A / 3 Ph 5 wire 50/60HZ

380V / 13A / 3 Ph. / 5 wire 50/60HZ
240V / 40A / 3 Ph 5 wire 50/60HZ

380V / 26A / 3 Ph. / 5 wire 50/60HZ


*Production speeds are estimates are based on 16” centers and will vary depending on ink manufacturer, humidity of shop, and other variables.


All amps shown are FLA (Full Load Amps), not recommended line size! Dryers on this page must be hard wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles, 210.20(a), 215.3 and 310 of the NEC code.

This dryer does not come with a plug. A plug will need to be added to the supplied pigtail, or the machine will need to be wired direct. We recommend speaking with an electrician if you have any questions.
