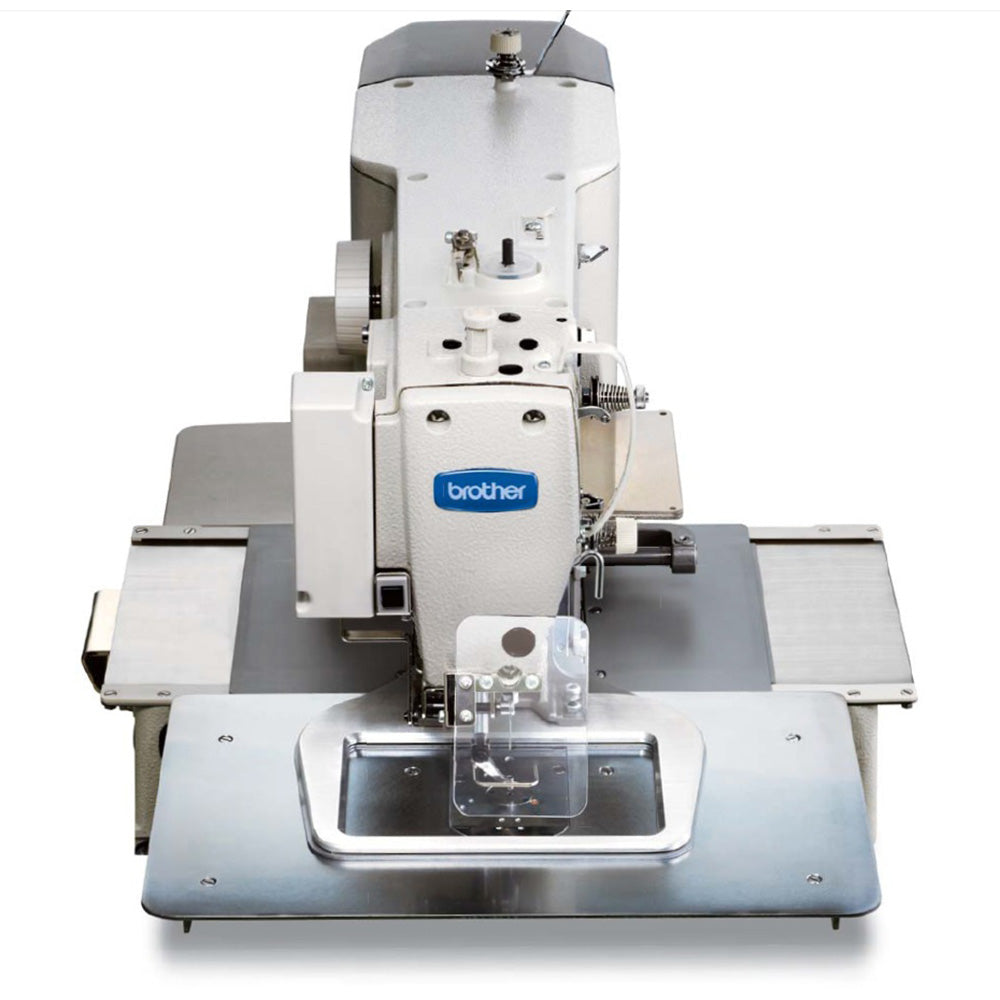

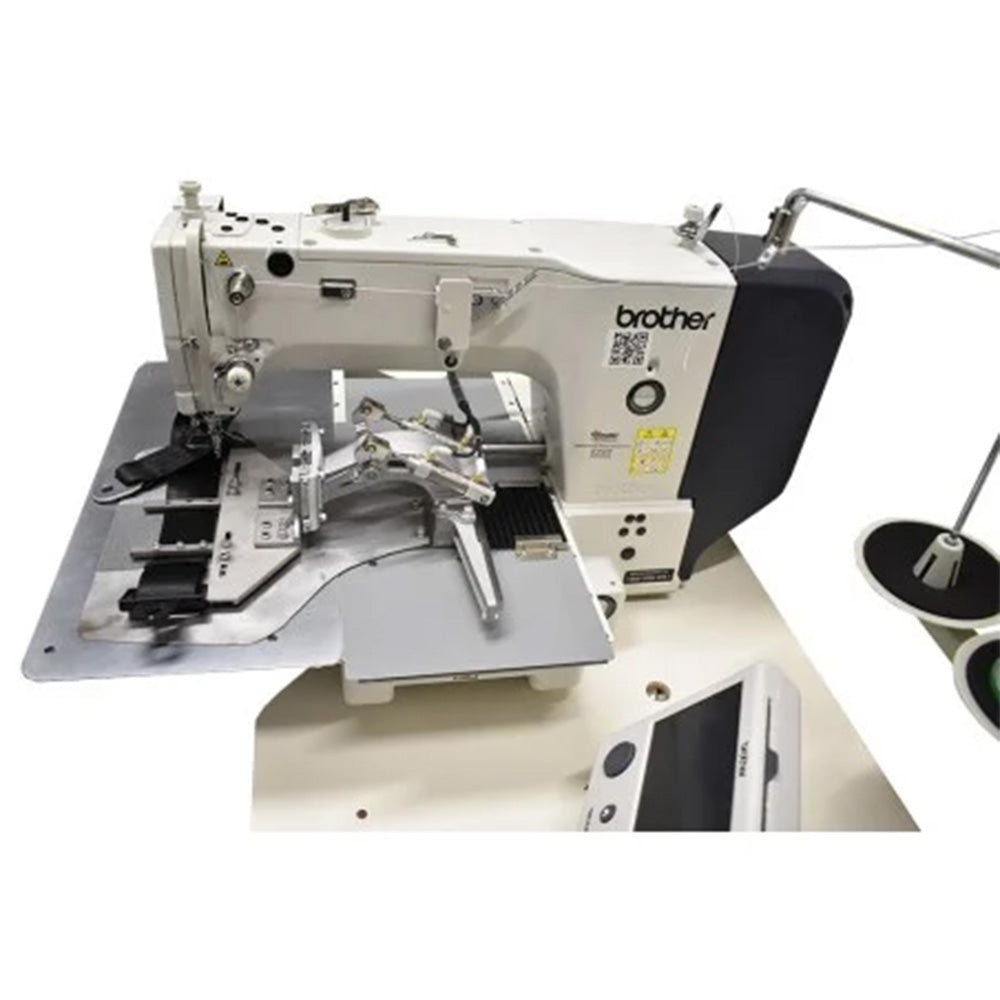

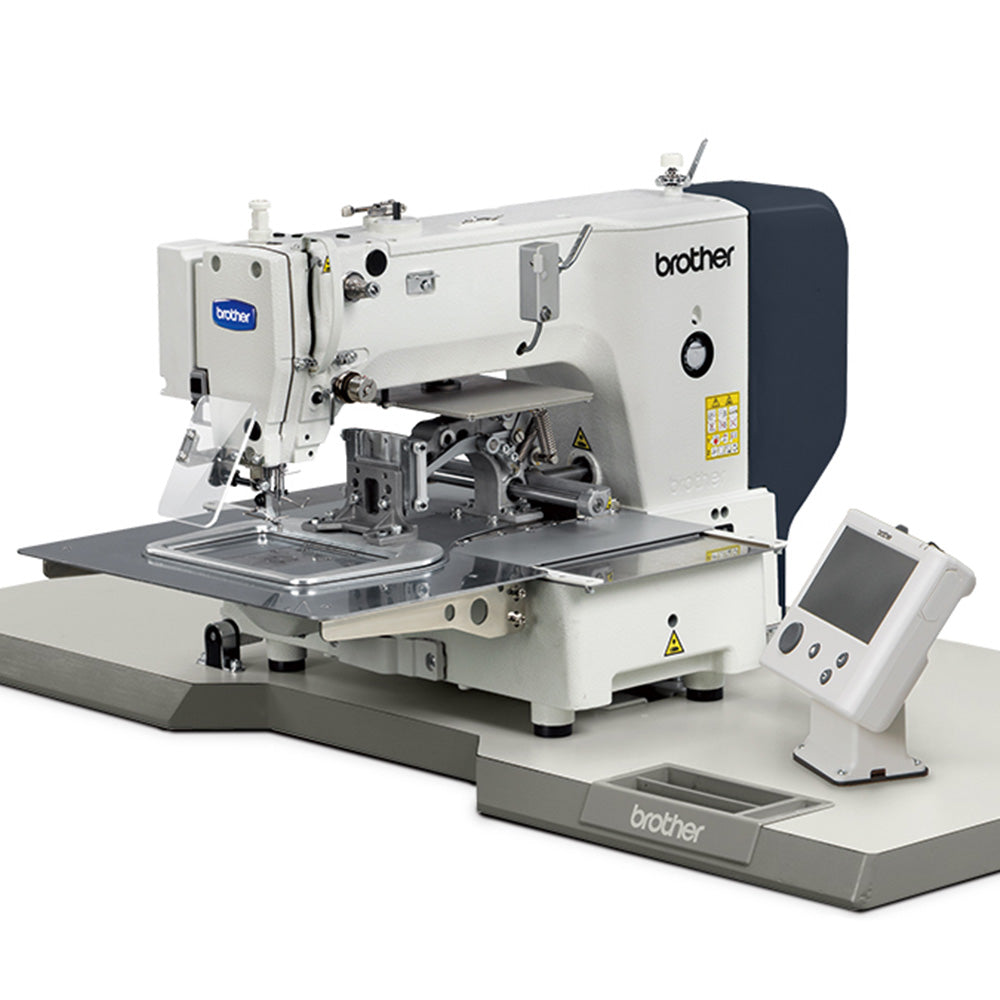

Brother BAS-311HN (Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed)

Brother BAS-311HN (Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed) - Default Title

SKU:

Financing Options

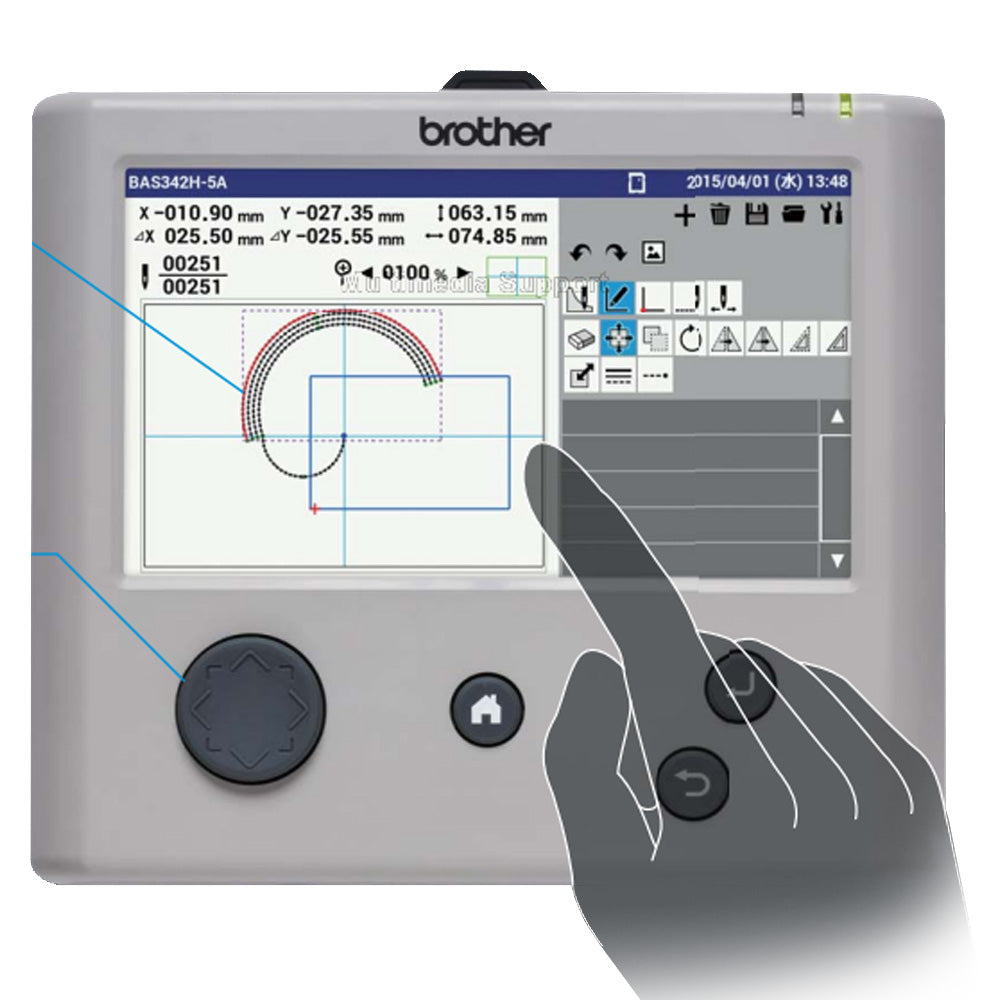

This machine provides the highest quality sewing exactly the way it is programmed even at high-speed sewing with maximum performance according to each sewing area. With the high functional LCD touch panel that offers easy programming, the preparation time can be reduced.

Product Resources

Afficher tous les détails

Additional Information

  • Quality Sewing Speed

High-rigid feeding commands beautiful stitching even when sewing at high-speeds of 2,800 sti/min



  • Great Needle Penetration

Powerful motor (550W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained. If the needle penetration resistance increases, vibration control (intermittent impact) automatically increases the penetration force.



  • Uniform and Stable Thread Tightness

Excessive or insufficient pressing by the stepping foot can be prevented, enabling a finish with uniform thread tightening.



  • Easy and Accurate Positioning of Materials

You can select a desired work clamp lowering operation from two patterns by changing the memory switch settings.



  • High Energy Savings

This machine is among one of the most energy saving programmable electronic pattern sewing machines in its class.



  • Simple Adjustment

The driver can be adjusted from the side without tilting the sewing machine. This reduces the time taken for adjustment and improves productivity when materials are changed.



  • Easy Sewing Pattern Change

The work clamp can be replaced quickly by loosening the two screws. When replacing the feed plate, align the reference holes of the needle plate and the feed plate.

BAS-311HN
Stitch form Single needle lock stitch
Max. sewing speed 2,800sti/min*1
Max. sewing area 150x100mm
Feed mechanism Intermittent feed (pulse motor drive)
Stitch length 0.05-12.7mm (per 0.05mm)
Max. number of stitches 20,000 stitches (per program)
Max. number of programs 999
Work clamp drive -S: Pulse motor drive
-A: Pneumatic drive
Work clamp lift amount -S: Max. 25.0mm
-A: Max. 30.0mm
2-step work clamp -S: Integrated-type
-A: Separate-type
Height of steppong presser foot 22.0mm
Stepping presser foot stroke 2.0mm-4.5mm、4.5mm-10.0mm or 0.0mm(Default setting: 3.0mm)
Hook Double-capacity shuttle hook
Thread wiper
Thread trimmer
Digital tension ◯ (excluding the seat belt specification)
Thread breakage detector
Data strage media Internal flash memory (data addition is available with external memory)
Motor AC servo motor 550W
Weight Machine head: 88kg
Control box: 9kg
Power Single phase: 100V/200V
3-phase: 200V/220V/380V/400V
Air pressure/ Consumption 0.5MPa    1.8l/min
