Tous les séchoirs BigRed disposent de deux systèmes d'air indépendants : un échappement de 600 cfm qui descend à travers la courroie et élimine complètement l'humidité et les fumées, et un système « d'air d'appoint » de 400 cfm qui filtre les peluches et les contaminants de l'air entrant dans la chambre de chauffage. De plus, ces modèles sont dotés de deux commandes de température pour les quatre éléments chauffants et d'un lit de refroidissement unique à la sortie qui accélère le refroidissement du vêtement pour un retrait rapide. Les autres caractéristiques de sécurité incluent un "mode de refroidissement" pour la mise hors tension et une tour d'éclairage pour surveiller facilement l'état de la sécheuse.

Spécifications :
  • VITE
    • 475 - 950 +chemises plastisol/h*
    • 216 – 432 chemises à base d'eau ou à décharge/h*
    • 72 – 144+ chemises DTG/h* avec encre blanche numérique
  • EXACT
    • Le contrôleur de température est précis à +/- 1 degré F.
    • Le PID numérique avec logique floue est le plus avancé de l'industrie
  • AJUSTABLE
    • La manivelle soulève ou abaisse simultanément toutes les chambres de chauffage jusqu'à 2" - 7" (5 - 17,7 cm) de la ceinture pour les articles volumineux ou les chapeaux
  • INTELLIGENT
    • Le plateau de refroidissement unique à la sortie refroidit rapidement les vêtements lorsqu'ils quittent la chambre de chauffage
    • PRATIQUE
      • Voltmètre de vitesse de bande numérique, un must have !
    • POLYVALENT
      • Air d'appoint et air d'échappement négatif, élimine rapidement l'humidité et les fumées
    • FILTRÉ
      • L'admission d'air filtré fournit un air de durcissement propre, pas de vapeurs recyclées !
    • À TOUTE ÉPREUVE
      • Système de suivi de bande transporteuse "X-Series"
    • LARGEUR DE CEINTURE - (largeur maximale du vêtement)
      • 30" (76 cm) ou 54" (137 cm)
    • LARGEUR DE CHAUFFAGE - 24" (61 cm) ou 48" (122 cm)
    • LARGEUR D'IMAGE MAXIMALE
      • 20" (51 cm) ou 44" (112 cm) (Largeur du radiateur moins 4" [10 cm])
    • EXTENSIBLE
      • Ajouter des chambres de chaleur et des extensions de ceinture
    Choix
    • Ajouter des chambres de chaleur @ 4,5' (137cm) de long
    • Extensions de ceinture, avant ou arrière, 18" (46 cm) de long
    • 3 phases, 208, 380, 480 tensions disponibles
    • Hotte d'évacuation, fournit une extraction supplémentaire des fumées
    • Rail de support de chapeau
    • Roulettes verrouillables pour une mobilité facile
    • Moteur d'entraînement robuste pour bandes transporteuses
    * Les vitesses de production sont des estimations et varient en fonction du fabricant d'encre, de l'humidité de l'atelier et d'autres variables.

    Titre
    Volts
    Phase
    Special Order
    disabled
    This product is typically ready for pickup or shipping within one week, subject to lead times provided by manufacturers.
    The VASTEX- BIGRED4 Sécheurs infrarouges haute performance is a made-to-order product that is only assembled and prepared for shipment after you place your order. Please note that freight costs are not included in the purchase price. After your purchase, we will contact you to confirm shipping details, provide a shipping quote, and give you the lead times from the manufacturer. Upon payment of the shipping invoice, we will arrange delivery as per your preferences. For additional information, connect with a RB Digital sales specialist today.
    Afficher tous les détails

    Features And Highlights



    • POWERFUL

      • LR X1-30: 120V/2,000 watt or 240V/2,600 watt heater
      • LR X1-54: 240V/5,200 watt heater

    • EFFICIENT

      Closely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing

    • DEPENDABLE

      Industry-leading 15-year heater warranty

    • ACCURATE

      Digital PID Temperature controller is accurate to +/-1°F

    • CONSISTENT

      Low friction belt aligner and DC belt speed control with digital display

    • HEAVY DUTY

      "X-Series" Conveyor Belt Tracking System with Teflon coated fiberglass belt

    • COOL

      Powered exhaust system cools the outer cabinet while evacuating moisture and fumes

    • ADJUSTABLE

      2 - 7 in. (5 - 18 cm) belt-to-heater clearance, adjustable separately on each side for each heater

    • EXPANDABLE

      Add 18 in. (46 cm) and 36 in. (92 cm) chambers and/or 18 in. (46 cm) belt extensions



    Add On Options


    To add additional options, our service team will contact you after purchase to assist in fully customizing your dryer.

    • Additional heating chambers and conveyor belt extensions
    • Heavy duty belt motor (recommend for longer conveyor belts)
    • Control box on left side (right side standard)
    • Locking casters for mobility



    Modular Expandability Allows Your Dryer to Grow With You


    The capacity (belt speed) of all Vastex floor standing conveyor dryers can be doubled or tripled as new or when needs increase by simply adding one or two modular heating chambers and extending the conveyor belt. This eliminates the need to invest in a larger dryer than you need at the onset, and avoids the high cost of purchasing a new dryer when your needs increase.



    Cutter

    Additional Information

    •
      LR-X3-30 1 Row
      Plastisol @ 25 secs.** 360+/hr
      Water Based/Discharge @ 70 secs. ** 120+/hr



    •
      LR-X3-54 2 Rows
      Plastisol @ 25 secs.** 720+/hr
      Water Based/Discharge @ 70 secs. ** 240+/hr

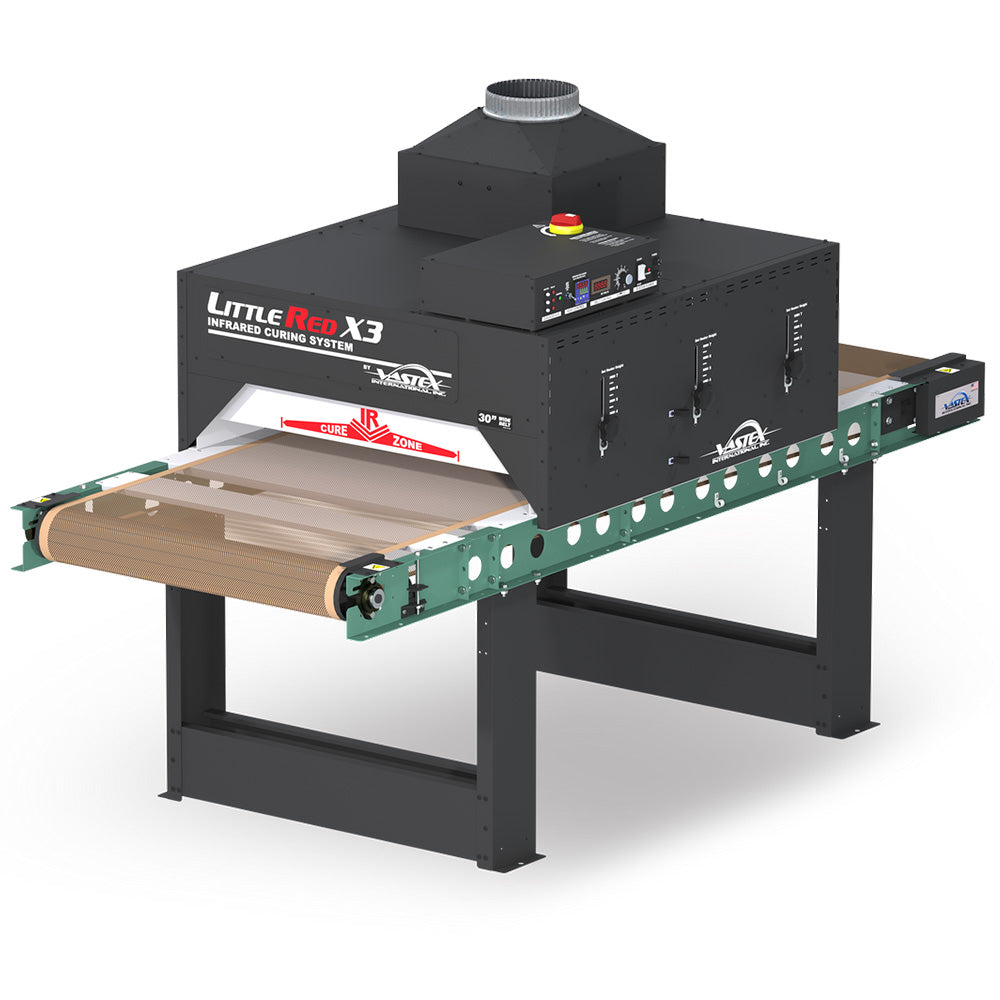

    The Little Red X3-30 model with 30 in. (76 cm) wide x 88 in. (224 cm) long conveyor belt is offered with three 24 in. (61 cm) wide 240V/2,600 watt heaters (total wattage 7,800 w) to cure up to 360 plastisol-printed garments/h or 120 discharge or water-based printed garments/hr and cures DTF adhesives at high rates.

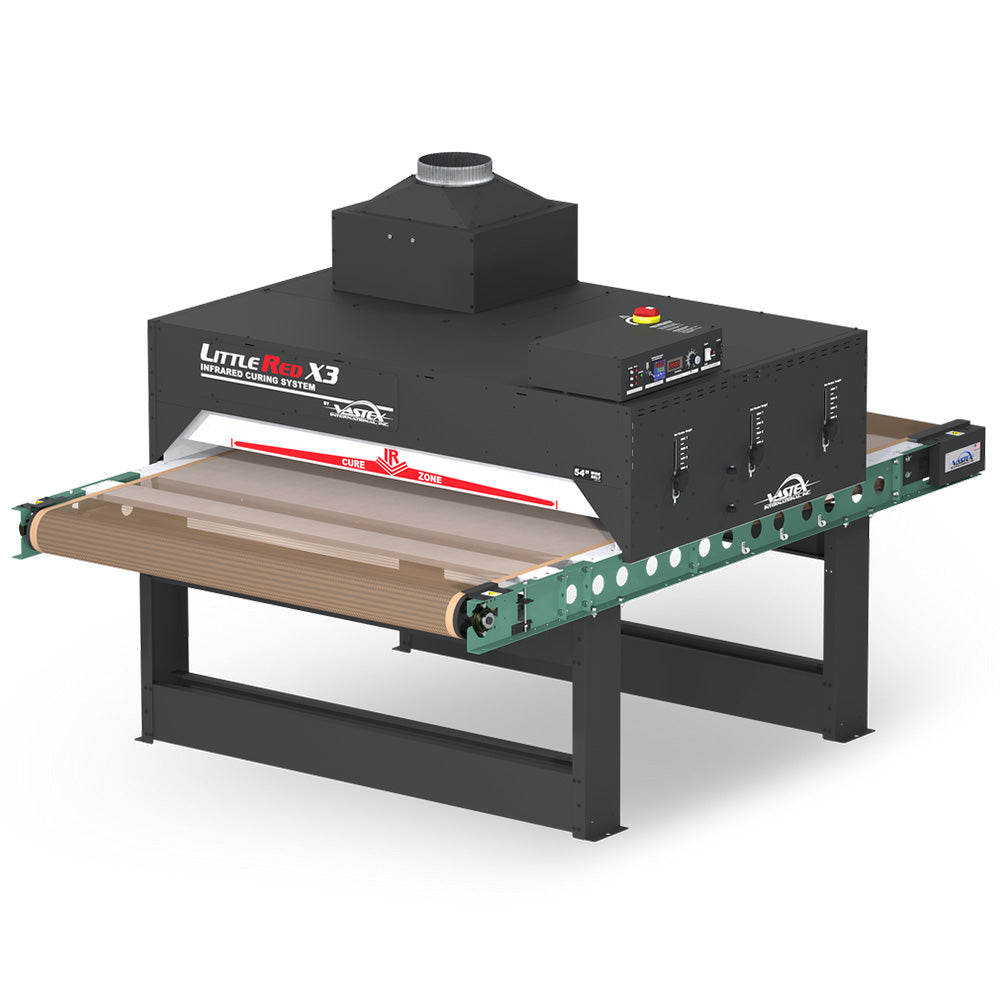

    The Little Red X3-54 model with 54 in. (137 cm) wide x 88 in. (224 cm) long conveyor is equipped with three 48 in. (122 cm) wide 240V/5,200 watt infrared heaters (total wattage 15,600 w) to cure up to 720 plastisol-printed garments/h or dry 240 discharge or water-based printed garments/h and cures DTF adhesives at high rates.

      LR-X1-18 LR-X1-30 LR-X2-30 LR-X1-54 LR-X2-54 LR-X3-30 LR-X3-54
    Heater Warranty 15 Year 15 Year 15 Year 15 Year 15 Year 15 Year 15 Year
    Defect Warranty 3 Year 3 Year 3 Year 3 Year 3 Year 3 Year 3 Year
    Shirts / Hr*
    Plastisol @ 25 secs
    110+@ 25 secs 90+(120V)/130+ (240V) @ 25 secs. 260+@ 25 secs. 260+@ 25 secs. 520+@ 25 secs. 360+@ 25 secs. 720+@ 25 secs.
    Shirts / Hr* - Waterbased/ Discharge 50+@ 70 secs 45+@ 70 secs. 90+@ 70 secs. 90+@ 70 secs. 180+@ 70 secs. 120+@ 70 secs. 240+@ 70 secs.
    Shirts/hr* - DTG/digital N/A N/A N/A N/A N/A N/A N/A
    Time in Tunnel Range (mm:ss) 00:17 - 01:20 00:17 - 01:46 00:14 - 01:28 00:17 - 01:46 00:11 - 01:39 00:11 - 01:39 00:11 - 01:35
    Belt Speed 0.6 - 7.4 FPM (0.18 - 2.3 MPM) 0.6 - 7.4 FPM (0.18 - 2.3 MPM) 1.4 - 17.7 FPM (0.4 - 5.4 MPM) 0.6 - 7.4 FPM (0.18 - 2.3 MPM) 1.4 - 17.7 FPM (0.4 - 5.4 MPM) 1.4 - 7.4 FPM (0.18 - 2.3 MPM) 1.4 - 7.4 FPM (0.18 - 2.3 MPM)
    Exhaust (Free Air) 144 CFM (4.1 CMM) 144 CFM (4.1 CMM) 300 CFM (8.5 CMM) 300 CFM (8.5 CMM) 350 CFM (9.9 CMM) 388 CFM (11 CMM) 550 CFM (15.6 CMM)
    Exhaust Stack Diameter 4” (10.16 cm) 4” (10.16 cm) 6” (15.24 cm) 6” (15.24 cm) 6” (15.24 cm) 8” (20.32 cm) 8” (20.32 cm)
    Overall Length 48" (122 cm) 48" (122 cm) 66” (168 cm) 66” (168 cm) 66” (168 cm) 88” (224 cm) 88” (224 cm)
    Overall Width 30" (76 cm) 41” (105 cm) 41” (105 cm) 65” (166 cm) 65” (166 cm) 41” (105 cm) 65” (166 cm)
    Overall Height 48” (122 cm) 48” (122 cm) 50” (127 cm) 48” (122 cm) 50” (127 cm) 50” (127 cm) 50” (127 cm)
    Belt Width 18” (46cm) 30" (76 cm) 30" (76 cm) 54” (137 cm) 54” (137 cm) 30” (76 cm) 54” (137 cm)
    Chamber Length 18” (46 cm) 18” (46 cm) 27” (69 cm) 18” (46 cm) 27” (69 cm) 41”(104 cm) 41”(104 cm)
    Chamber Infeed Width 21” (53cm) 33.5” (85 cm) 33.5” (85 cm) 58.5" (149 cm) 58.5" (149 cm) 33.5" (85 cm) 58.5" (149 cm)
    Chamber Infeed Height (adjustable) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm) 2" - 7" (5 - 17.7 cm)
    Heat Range (@ Heater) 0-750 F° (0-399 C°) @ 120 or 240V 0-900F° (0-482C°) @ 240V 0-750F° (0-399C°) @ 120V 0-900 F° (0-482 C°) @ 240V 0-900 F° (0-482 C°) @ 240V 0-900 F° (0-482 C°) @ 240V 0-900 F° (0-482 C°) @ 240V 0-900 F° (0-482 C°) @ 240V
    Heater Size & Standard Wattage** 16"x20"(40.6x50.8 cm)

    2,050 Watts
    12" x 24" (30 x 61 cm)

    240V / 1 @ 2,600 Watts 120V / 1 @ 2,000 Watts
    12" x 24" (30 x 61 cm)

    2,600 = 5,200 Watts
    12" x 48" (30 x 122 cm)

    5,200 Watts
    12" x 48" (30 x 122 cm)

    10,400 Watts @ 240V 12,000 Watts @ 380V
    12" x 24" (30 x 61 cm)

    7,800 Watts Total
    12" x 48" (30 x 122 cm)

    15,600 Watts Total
    Cost / hour to operate
    based on 10 cents / kwh
    20 cents 26 cents @ 240V 20 cents @ 120V 52 cents 52 cents $1.04 78 cents 1.56 cents
    Unit Weight 172 lbs (78 kg) 220 lbs (100 kg) 304 lbs (138 kg 380 lbs (173 kg) 480 lbs (218 kg) 480 lbs (218 kg) Call for details
    Shipping Weight*** 295 lbs (134 kg) 350 lbs (156 kg) 495 lbs (225 kg) 550 lbs (250 kg) 638 lbs (290 kg) 548 lbs (249 kg) 828 lbs (376 kg)
    Shipping Dimensions*** 37" x 45" x 40" (94 x 115 x 102 cm) 37" x 45" x 40" (94 x 115 x 102 cm) 50” x 48” x 40” (127 x 122 x 102 cm) 70” x 42” x 58” (178 x 107 x 148 cm) 70” x 42” x 58” (178 x 107 x 148 cm) 49” x 45” x 56” (125 x 115 x 143 cm) 69” x 49” x 58” (176 x 125 x 148 cm)
    Electrical Specs** Chamber 120V / 16.5A / NEMA 5-20P 240V / 8.2A / 1 Ph. / NEMA 6-15P 240V / 11A / 1 Ph. / NEMA 6-15P 120V / 16.5A / NEMA 5-20P 240V / 21.6A / 1 Ph. / 3 wire 50/60HZ 240V / 22A / 1 Ph. / 3 wire 50/60HZ 240V / 44A / 1 Ph. / 3 wire 50/60HZ 240V / 34A / 1 Ph. / 3 wire 50/60HZ 240V / 68A / 1 Ph. / 3 wire 50/60HZ
    Electrical Connection Cordset Included Cordset Included All amps shown are FLA (Full Load Amps), not recommended line size! Dryers on this page must be hard wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles, 210.20(a), 215.3 and 310 of the NEC code.
    Optional Power 208V / 11A / 1 Ph. / NEMA 6-15P 208V / 11A / 1 Ph. / NEMA 6-15P 208V / 21.6A / 1 Ph. / 3 wire 50/60HZ

    240V / 15A / 3 Ph 5 wire 50/60HZ

    380V / 9A / 3 Ph. / 5 wire 50/60HZ
    208V / 22A / 1 Ph. / 3 wire 50/60HZ

    240V / 15A / 3 Ph 5 wire 50/60HZ

    380V / 10A / 3 Ph. / 5 wire 50/60HZ
    208V / 44A / 1 Ph. / 3 wire 50/60HZ

    240V / 28A / 3 Ph 5 wire 50/60HZ

    380V / 20A / 3 Ph. / 5 wire 50/60HZ
    240V / 21A / 3 Ph 5 wire 50/60HZ

    380V / 13A / 3 Ph. / 5 wire 50/60HZ
    240V / 40A / 3 Ph 5 wire 50/60HZ

    380V / 26A / 3 Ph. / 5 wire 50/60HZ


    *Production speeds are estimates are based on 16” centers and will vary depending on ink manufacturer, humidity of shop, and other variables.


    All amps shown are FLA (Full Load Amps), not recommended line size! Dryers on this page must be hard wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles, 210.20(a), 215.3 and 310 of the NEC code.

    This dryer does not come with a plug. A plug will need to be added to the supplied pigtail, or the machine will need to be wired direct. We recommend speaking with an electrician if you have any questions.
